H Type Breeder

miltilayer breeding cage
poultry breeding cage for chicken
breeding cage for sale
auto breeding cage

What is breeding cage

Breeding cage is a kind of specialized cage, which is mainly used to raise male and female chickens together according to a certain ratio, and replace artificial insemination through natural mating.

This model makes use of the physiological habits of chickens, such as feeding, drinking, mating and roosting, and organically combines breeder mating with poultry facilities breeding technology to realize automation of feeding, drinking, environmental control (ventilation, lighting, temperature and humidity, etc.), manure cleaning, egg collection and other production processes.

The design of the cage is to improve the efficiency of breeding, reduce labor intensity, and the spread of disease. It is divided into single-layer and multi-layer cages. Multi-layer cages are commonly used in 3-8 layers, the ratio of male and female is 1:9. Male and female chickens should be combined at 13 weeks to 15 weeks of age. The cage should be kept in a dark light environment (illumination less than 5 lux).

Breeding cage specification

Service Life

15-20 years (based on the material, local environment and equipment maintenance)

Certification

ISO9001 International standard

Material

Q235 and 275g/㎡ galvanized aluminum wire mesh & 275g/㎡ hot dip galvanized plate

Application

Large-scale poultry house and closed house

Tiers

2-8 tiers (according to the height of house and your anticipate farming scale)

Area for one bird

675-981cm²

Bird per unit

22 birds (2 male chicken&20 female chicken) or 32 birds (3male chicken & 29 female chicken)

Male/female quantity ratio

1 male chicken:10 female chicken

Automatic machines

Automatic drinking, automatic feeding, automatic manure removing, atuomatic egg collecting and automatic climate control

Model Number

tiers

Cage dimension/tier

Birds/cell

Birds/set

cm²/bird

PT-HLB02

2

1800*1200*650

22/32

44/64

675/981

PT-HLB03

3

1800*1200*650

22/32

66/96

675/981

PT-HLB04

4

1800*1200*650

22/32

88/128

675/981

Get free quote

Saving land and reducing investment


Breeding cage can save land resources and reduce investment in civil construction, with large feeding capacity per unit area, which is suitable for large-scale breeding.

Improving the degree of mechanization


Breeding cage can save land resources and reduce investment in civil construction, with large feeding capacity per unit area, which is suitable for large-scale breeding.

Energy savings and reduced Biosecurity Risks


Despite the high energy consumption of this cross-cage system, its high-density monolithic structure reduces biosecurity risks while improving energy efficiency.

Improve breeding efficiency


Breeding cage for sale can significantly improve the breeding efficiency of breeders, reduce labor intensity, and reduce the spread of diseases. Breeding efficiency can be increased by 3 to 5 times.

Improvement of chicken health


The chickens in the cage have been managed on a large scale as well as fed scientifically, and the chickens have shown good egg-laying and reproduction performance.

Core advantages


①No need for specialized equipment and complex technology ②Save semen processing and manual operation costs ③Consistent with the natural behavior of animals, reduce stress reaction

breeding cage for sale

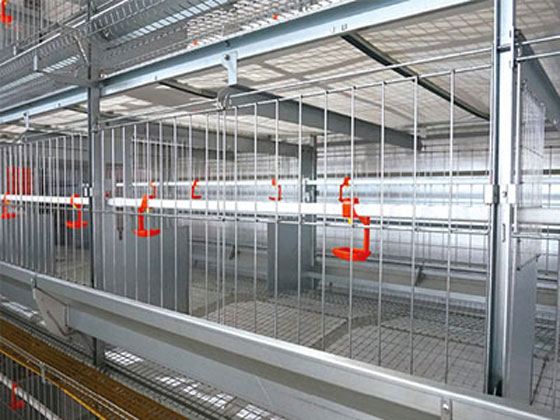

poultry breeding cages chicken

Advantages of FamTECH H Type Breeding Cage

FamTECH breed cage is durable and anti-corrision for its superior cage wire material and sophisticated processing.

The use of this breeding cage can significantly improve the bottom area and relative activity area of individual breeders’ cages, improve the production and reproductive performance of breeders, and maintain a high level of health.

Cage system

  • Appropriate inclination degree of breeding cage makes sure of eggs’ smooth entrance to egg conveyor belt.
  • No-roof design prevents injury during chicken mating.
  • Spacious cage design provides enough space for hen to build nest and consequently improve the egg laying rate.
  • Barrier with small holes between cells can effectively prevent mutual pecking and increase ventilation.
breeding cage system

Feeding system

  • Feeding system of breeding chicken cage runs automatically. The special designed hopper trolley can distribute feed evenly with lowest cost.
  • The feeding method is traveling feeder, which adopts seamless connecting guide rail and trough to make the guide wheel run smoothly and noiselessly, meanwhile ensure the feeding evenly. The deeper trough ensures that no food is wasted while the chickens are feeding.
  • The feeding system can meet the different feeding needs of roosters and hens. In the head and tail space, add the device of feeder back. The watering system with three adjustable water lines increases the breeder’s welfare and is more adaptable.

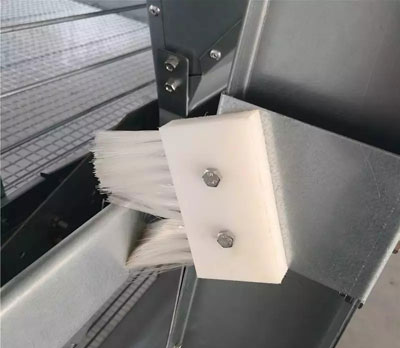

breeding cage feeder

Drinking system

  • The water supply line is set in the middle of the top of each layer of cages, and two nipples are set in each cage for the chickens on the left and right side of the cages to drink, and a V-shaped water trough is set under the nipples to catch the splash of the chickens when they drink, and then evaporate naturally. This way, the splash of water will not fall into the chicken manure, which makes the chicken manure drier.
  • At the front end of each water line, there are filters, intelligent water meters, dosers and pressure regulators. Through the digital information of the smart water meter, you can know the daily water consumption of the chickens and judge the health status of the chickens.

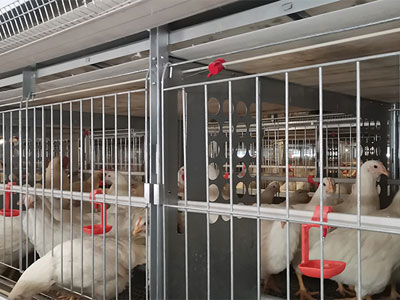

chicken breeder cage

Manure cleaning system

  • The water supply line is set in the middle of the top of each layer of cages, and two nipples are set in each cage for the chickens on the left and right side of the cages to drink, and a V-shaped water trough is set under the nipples to catch the splash of the chickens when they drink, and then evaporate naturally. This way, the splash of water will not fall into the chicken manure, which makes the chicken manure drier.
  • At the front end of each water line, there are filters, intelligent water meters, dosers and pressure regulators. Through the digital information of the smart water meter, you can know the daily water consumption of the chickens and judge the health status of the chickens.

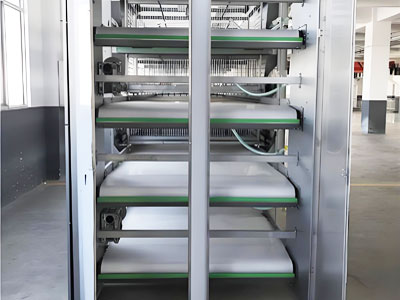

breeding cage manure removal

Automatic egg collection system

The automatic egg collection and conveying system is a key component of stacked-layer egg-laying hen farming equipment, effectively reducing egg breakage rates and improving efficiency. Its design primarily addresses two issues:

Soft egg removal device

Before eggs enter the collection machine, soft and broken eggs are removed to prevent clogging during transportation, ensuring smooth movement of intact eggs.

Egg distributor installation

An egg distributor is installed at the junction between the collection machine and the central conveying line, allowing eggs to roll gently in an orderly manner to minimize collisions and reduce breakage risks.

This system significantly reduces labor requirements and greatly lowers egg breakage rates, enhancing overall egg production efficiency.

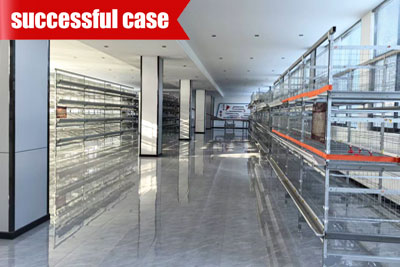

chicken breeding cage for sale

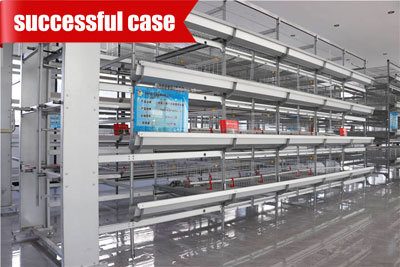

poultry breeding cage for sale

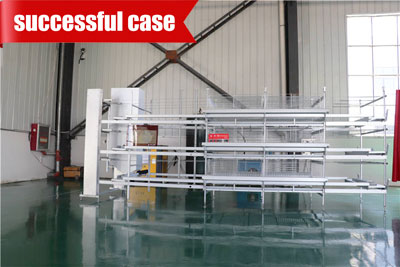

breeding cage case
