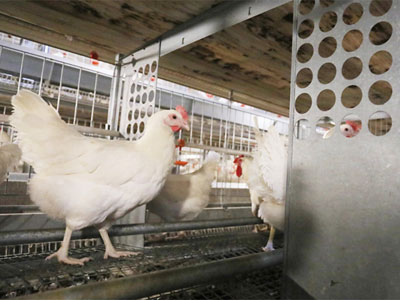

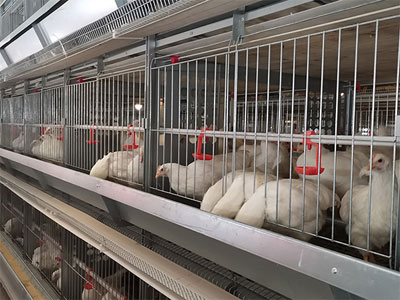

The breeder cage is a cage specifically designed for the natural mating (nativity) of breeders (or breeder birds), as opposed to the artificial insemination mode of breeding. Its core design goal is to increase the fertilization rate of breeding eggs, while at the same time taking into account automated management and breeding efficiency.
The cage frame is treated with hot-dip zinc technology, the service life is up to 25 years.
Five scraper designs for manure cleaning system, the process of manure cleaning is cleaner and more thorough.
The unique design of feeder can meet the different needs of powder and granule etc.
Environmental control system with full-screen touch paddle, three levels of authority, triple alarms, and automatic emergency system switching.
The cage bottom mesh is reverse beveled with a golden 8° design, which ensures higher quality of the egg products.
The feeder is one-piece design and equipped with an observation window, which reduces the generation of dust and makes it easy to keep track of the residual material situation.
Why choose FamTECH’s breeder cage?
We provide poultry cages (chicken cages, brooder cages, rabbit cages, pigeon cages), feeding machines, manure cleaners, egg collectors, environmental control systems, fans & cooling pads, and various standard & customized livestock/poultry farming equipment and accessories.
FamTECH Cage Series Includes:
- Brooder Cages (vertical, step-type, stacked)
- Layer Cages (vertical layer cages, step-type layer cages, stacked layer cages)
- Rooster Cages, Broiler Cages, Breeder Cages
- Rabbit Cages, Pigeon Cages, and other standard & customized livestock/poultry cages and accessories.
FamTECH Supporting Products:
- Automatic Manure Cleaners (scraper type, conveyor belt type)
- Automatic Feeders (overhead rail type, gantry type)
- Fans (fiberglass-reinforced, sliding shutter, gravity-operated)
- Cooling Pads (standard, aluminum-framed)
- Environmental Control Systems (ammonia & CO₂ monitoring)
- Hot Air Blowers, Feed Grinders, Manure Solid-Liquid Separators
- Production & Sales of all related farming equipment and accessories.
Our products and equipment, high degree of automation, a chicken house can be managed by two people, service life, national standard Q235 high linear steel plus hot-dip galvanized, cages can be up to about 20 years, not easy to deform, and durable.

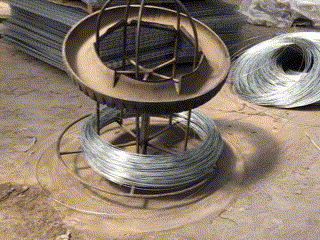

Our company insists on using high quality national standard Q235 high linear steel in cage material, galvanized with full automation galvanized wire, which is about 5 times of the thickness of ordinary galvanized wire, and the mesh zinc layer is even and smooth. Insisting on every product not to cut corners, coupled with reasonable scientific design makes our cages long service life, convenient for raising chickens, high degree of automation. We adhere to the quality of the world, seriously treat each product, so that many customers with satisfaction.
Breed Cage Specification
| Service Life | 15-20 years |
| Certification | ISO9001, SGS |
| Material | Q235 wire mesh and cold.hot galvanized sheet 275g/㎡ galvanized aluminum wire mesh & 275g/㎡ cold/hot dip galvanized plate |
| Application | open house or semi-open house |
| Tiers | 2,3 (according to the height of house and your anticipate farming scale) |
| Area for one bird | 780cm² for female chicken; 1300cm² for male chicken |
| Automatic machines | 2,3 (according to the height of house and your anticipated farming scale) |
| Cage size | 1950*400*400mm (female cage); 1950*400*500mm (male cage) |
| Bird/cell | Cell/set | Mating method | |
| Female | 2 | 30 | manual |
| male | 1 | 24 | manual |

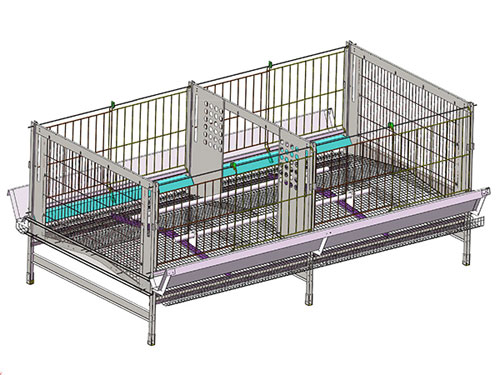

Advantages of FamTECH A type breeder cage
Compared with traditional cages, A-type cages are convenient for the selection and classification of chickens, so that the epidemic prevention and hygiene work of chickens can be effectively guaranteed.
Space optimization
A-type chicken breeder cage is tilted to facilitate the automatic rolling down of eggs and provide space for roosters to climb across.
Larger than normal cages to ensure that the roosters can successfully complete mating.
Single cage size:
Width: 1200-1500mm (to accommodate 10-12 hens + 1 rooster).
Depth: 600-700mm (to ensure room for the rooster to turn around).
Front height: 450mm, back height: 350mm (inclined angle 12°-15° for egg collection).
Automation system configuration
Feeding system:
Chain/disc feeder, precise control of feed difference between male and female chickens (male chickens need high protein).

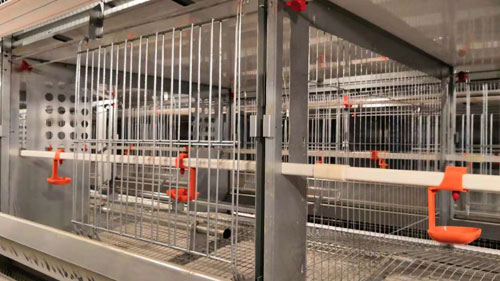

Drinking water system:
Nipple drinker water pressure: 10-15cm³/min, to prevent water leakage caused by moisture.
Egg collection system:
Egg rolling speed ≤ 0.5m/s, avoiding collision cracks.
Buffer belt design reduces egg breakage rate to <1%.
Detailed Classification and Structural Comparison of poultry breeder cage
| Type | A-Type Breeder Cage | H-Type Breeder Cage | Group Breeder Cage |
|---|---|---|---|
| Structure | Sloped A-frame roof for automatic egg rolling | Double-row parallel layout with central walkway for management | Open-floor large space, mimicking natural conditions |
| Density | 15-20 hens/m² | 12-15 hens/m² | 8-10 hens/m² |
| Automation | Fully automated feeding/egg collection/manure cleaning | Semi-automated systems predominant | Mostly manual management |
| Application | Intensive breeder farms | Medium-sized farms | Organic or welfare-certified farms |
Why Choose FamTECH?

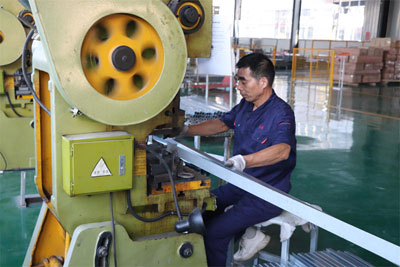

Our products receive constantly build and upgrade by our professional and experienced R&D team, and produced by fully automatic CNC production lines and 4 KUKA robot lines to achieve best-quality and accuracy. On this condition, we have successfully completed hundreds of product delivery to 80+ countries in 5 continents. Our customers will receive the products with strict factory inspection and international standard package.
