Feeding System

Poultry feeding machine

Averagely speaking, poultry feeding machine needs to work 5 times per day so its high quality must be guaranteed. FamTECH automatic chicken feeder is produced of IOS9001 galvanized sheet which is durable and can prolong its service life to 20 years.

The system is fully automatic and the feed is distributed evenly so that the labor cost and feed cost are decreased greatly. You only need to hire two people to take care of 100,000 birds with appropriate feed cost.

FamTECH provides 3 types of poultry feeding machines which you can use in chicken, duck, rabbit, quail, pigeon cages or other poultry farms: chain feeding system, poultry pan feeding system, poultry trough feeder.

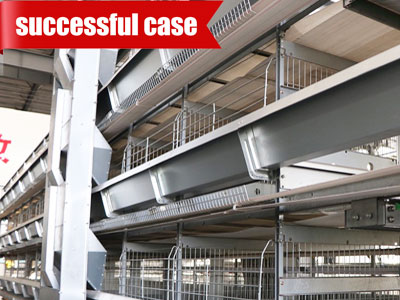

automatic chicken feeder with timer
chain feeding system

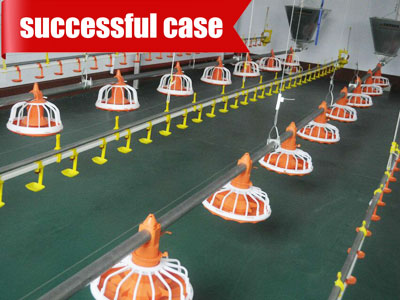

automatic chicken feeders and waterers

The main poultry equipment we offer includes: automatic drinking water system, automatic manure cleaning system, automatic egg collection system, automatic climate control system, egg incubator, manure dryer, etc. In recent years, the company has constructed standardized, automated and large-scale egg farms, breeder farms, broiler farms, broiler farms, brooder farms and so on, which have domestic and foreign standard rearing level.

Poultry trough feeder

This kind of poultry feeding machine is often used in battery cages such as layer cage, broiler cage, duck cage, quail cage and rabbit cage

V shape feed trough

Bending galvanized steel sheet into a “V” shape to create an anti-corrosion feed trough with low feed wastage rate.

The round edge design is safe for farmers to clean and check the trough.

High-quality adjustment apparatus can change the height of feed trough flexibly to meet various requirements of birds of different ages.

poutry trough feeder

Feed cart system

The trolley of automatic chicken feeder is made of hot galvanized sheet so it possesses the feature of being sturdy and durable. The cart is fully closed design to prevent dust and harmful substances to get in.

The quantity of feed can be seen clearly at a glance through the observation window on the trolley.

Residual feed collection device at both the beginning and the end of feed trough can make full use of feed and reduce feeding cost.

Self-actuated automatic feed cart is independently controlled by steel cables and one high-quality gear motor from Taiwan Mingchun (0.75-HP per row) located on the top of the cage which is easy to maintain and can ensure smooth operation.

trough feeder for battery cage

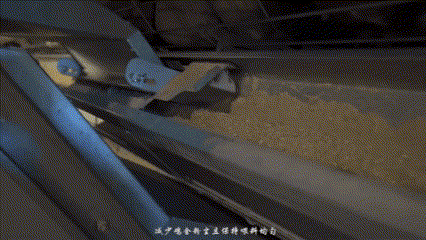

Galvanized chicken feeder trough

FamTECH feed cart is equipped with a brush that can clean the trough simultaneously when it is moving.

Guide wheel and wear strip on the distribution cart reduce the friction between components and extend the service life of the feeding system.

Capacity per hopper: 50kg

Running speed: 8 meters per minute

galvanized chicken feeder trough

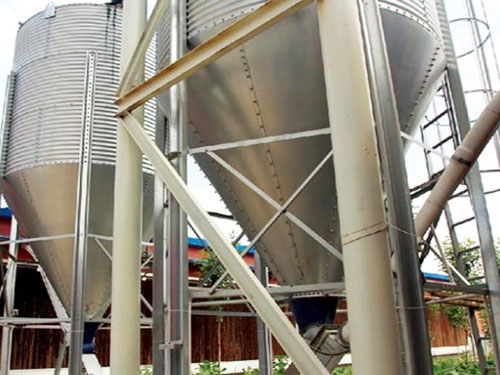

Poultry feed Silo (8T/10T/17T20T)

Conveyed by the best-quality South African auger, feed is distributed automatically to the feed carts from the 275g/㎡hot galvanized sheet feed silos with automatic exhaust function.

Feed elevator and silo weighing system of the feed ensure the hygienic, homogeneous, mixed and equal distribution.

poultry feed silo
Free quote

Pan feeder poultry

This kind of poultry feeding machine is often used in cage-free system such as slatted floor system in poultry.

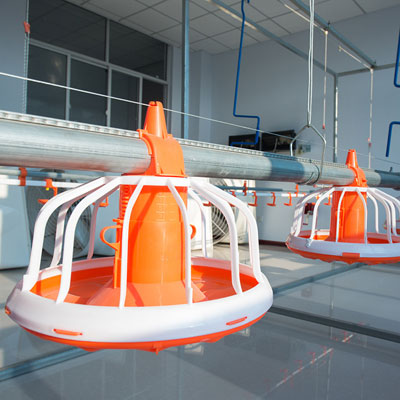

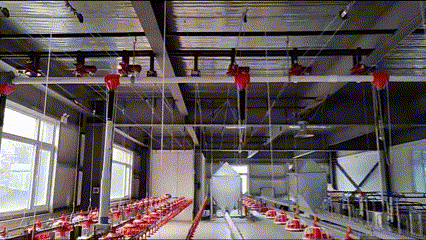

poultry pan feeding system

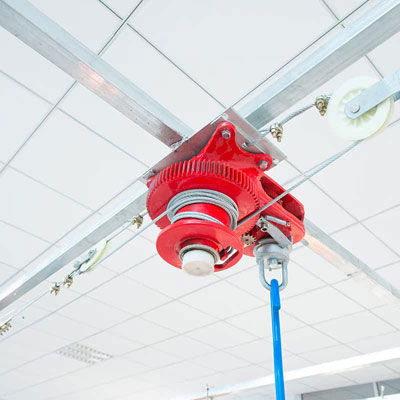

Poultry pan feeding system consists of hopper, feeding pipe, winch, pan, hanging lifting device, motor and material level sensor.

Its main function is to convey the material in the hopper to each pan to ensure that the chickens eat, and the material level sensor to automatically control the transmission of the motor start and stop, to achieve the purpose of automatic feeding.

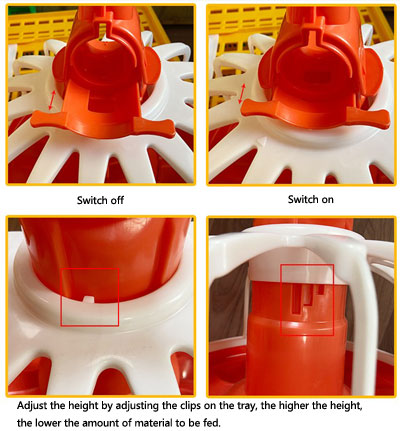

feed pans for chickens

Poultry feed pans

The material door switch can adjust the amount of feed, the adjustment is convenient, fast and accurate.

V-shaped corrugated tray bottom reduces the amount of material stored in the bottom of the tray, which is convenient for chickens to feed freshly.

The edge of the pan is tilted towards the center of the pan to avoid feed spillage and waste.

Smooth inward tilting outer edge prevents crop injury and allows broiler chickens to eat safely and comfortably.

The feed pan can be rotated 360° and swung freely to prevent chickens from bumping.

Pan material: PP (polypropylene) raw material processing

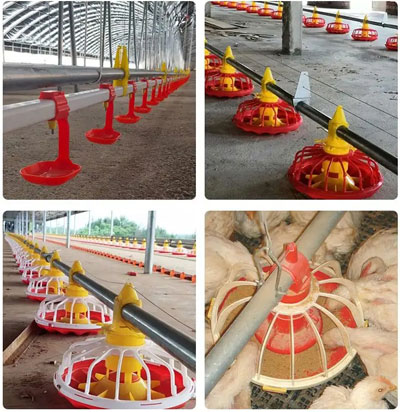

poultry feeder trays

Poultry pan feeding system

Imported special material high carbon manganese steel spiral angure, feeding capacity: 450kg/h.

Adopt wear-resistant and anti-aging special pvc material conveying pipe or 275g hot galvanized pipe.

The motor and hopper transfer interface all use corrosion-resistant hot galvanized treatment, greatly providing a service life.

The volume of material tower can be specifically designed according to the number of chickens (about 0.65t per cubic meter of feed).

The automatic electric control box is equipped with imported material level sensor, which greatly improves the accuracy of feeding.

The height of the feed pan can be raised and lowered according to the different ages of the chickens, and it is easy to clean, and it can be removed to be used as a brooder open food tray.

Our products

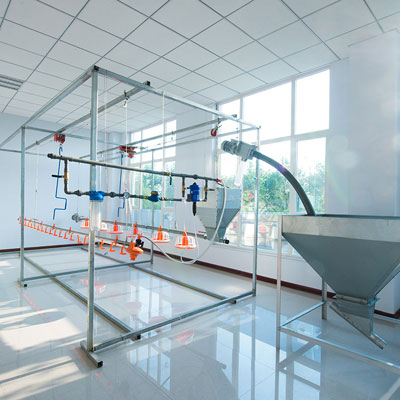

automatic feeding system for poultry
automatic chicken feeder system
auger chicken feeder
Free quote

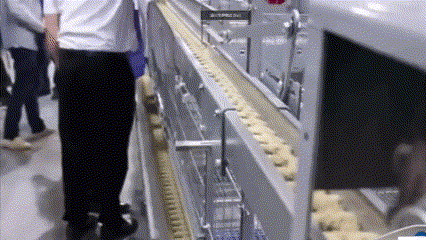

Chain feeding system

The chain feeder is an automated feeding system that is commonly used in the feeding process. The principle is to transport the feed powder or pellets from the storage device to the battery cages by means of a chain and a conveyor mechanism. Compared with the traditional manual or semi-automatic feeding method.

This kind of poultry feeding machine is often used in battery cages such as layer cage, broiler cage, duck cage, quail cage and rabbit cage

Advantages of chain feeding system

  • Even feeding and smooth running.
  • The feeder chain imported from South Africa is equipped with self-protection device to avoid dragging the cage when overloaded.
  • Each chain is controlled by a separate motor, running independently without interference.
  • The drive system adopts cycloid reducer, which has the advantages of more reliable and smooth operation, even feeding and lower impact noise than the gear reducer.

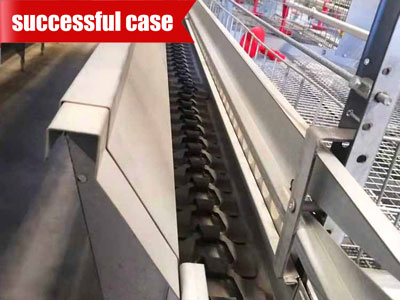

    chain feeding system

    Why choose chain feeder from FamTECH?

    Stable operation

    The drive system adopts a cycloid reducer, which makes the chain feeder run stably.

    Long service life

    The frame is made of high-strength nylon material, which is anticorrosive and corrosion-resistant, more suitable for the chicken house feeding environment.

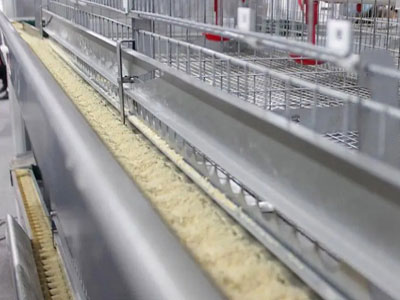

    chain feeder system poultry

    Automatic adjustment

    The feed trough frame and connecting parts are of lifting type, and the height can be adjusted according to different feeding stages.

    Excellent material

    The trough is made of wear-resistant and rust-resistant base material with 44mm width of food limit grill, and can be customized according to customer’s requirements with different specifications of the width of food limit grill.

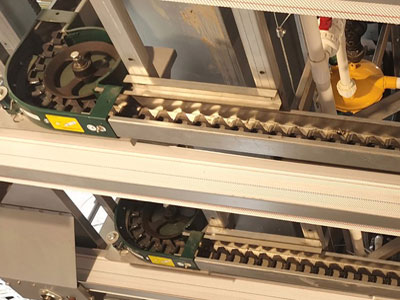

    chain feeder for battery cage

    Sturdy and reliable

    The surface of 90-degree corner wheels and guide rails are treated with special hardening treatment, and the bearings are made of alloy bearings that do not require oiling, which are more wear-resistant.

    Convenient

    The interface between the feed box and the trough is equipped with a material shielding plate, which can effectively prevent the feed from overflowing.

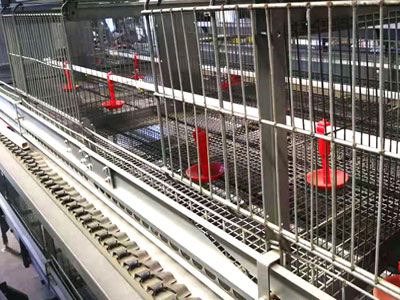

    chicken cage chain feeding
    Free quote

    Poultry feed machine price

    Feeder TypeMaterialPrice RangeBest ForAutomation Level
    Trough FeederGalvanized Steel / Plastic1.50–4.00/meter (manual)
    5-15/meter (automated auger)
    Small to medium farmsManual/Semi-Auto
    Chain FeederSteel + Motorized System500–1,500 (small-scale)
    2,000–10,000+ (large-scale)
    Large commercial farmsFully Automated
    Pan FeederPlastic / Galvanized Steel2–8 per unit (single pan)
    3–12/pan (auto-system)
    Precision feedingSemi-Auto/Fully Auto
    *The price above is just for reference, contact us to get free quote

    Comparison of 3 auto poultry feeder

    Feeder TypeAutomation LevelFeed WastageBest For
    Trough FeederManual/AutomatedModerateSmall to large farms
    Chain FeederFully AutomatedLowLarge-scale farms
    Pan FeederSemi-AutomatedLowFloor raising
